Beskrivning

• Voltage    10-32V DC
• Theoretical effect    10W
• Consumption     8,5W

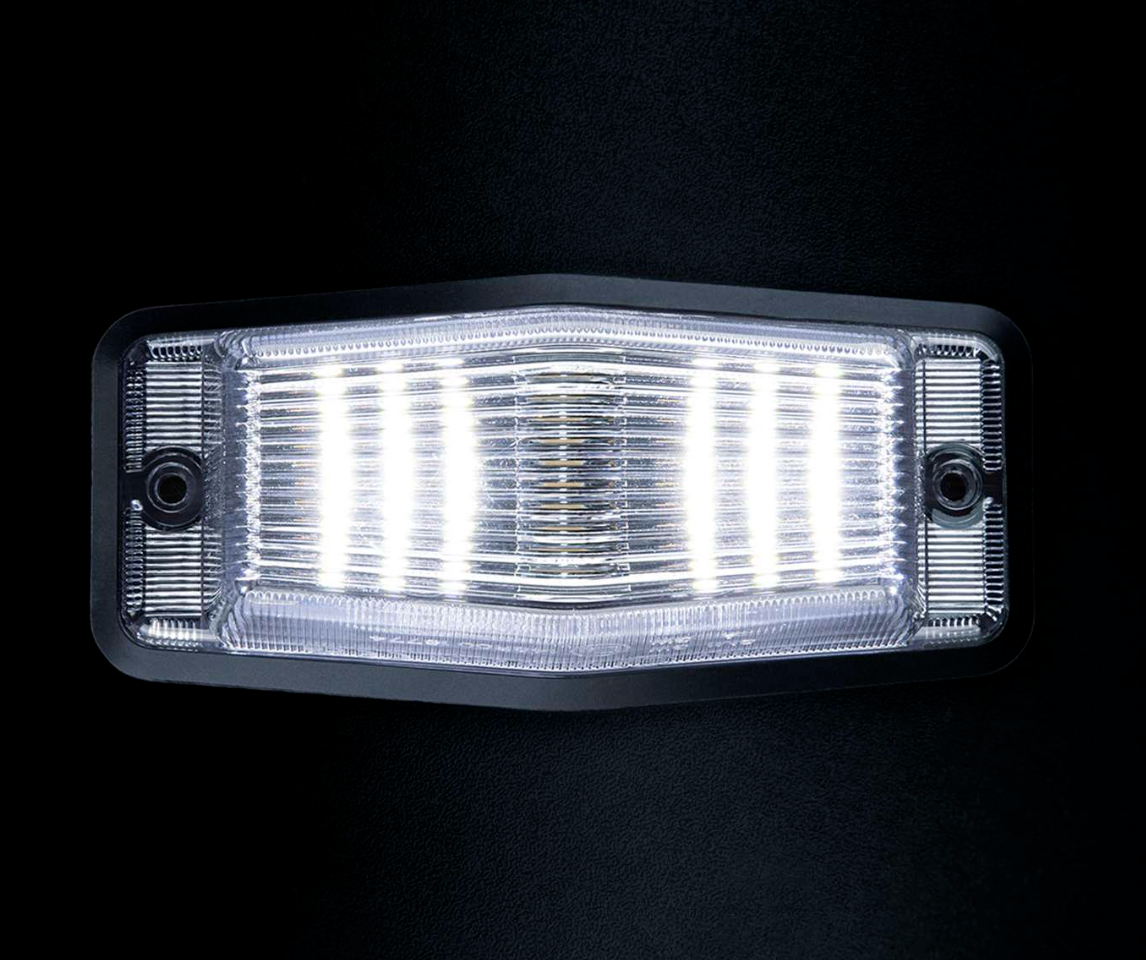

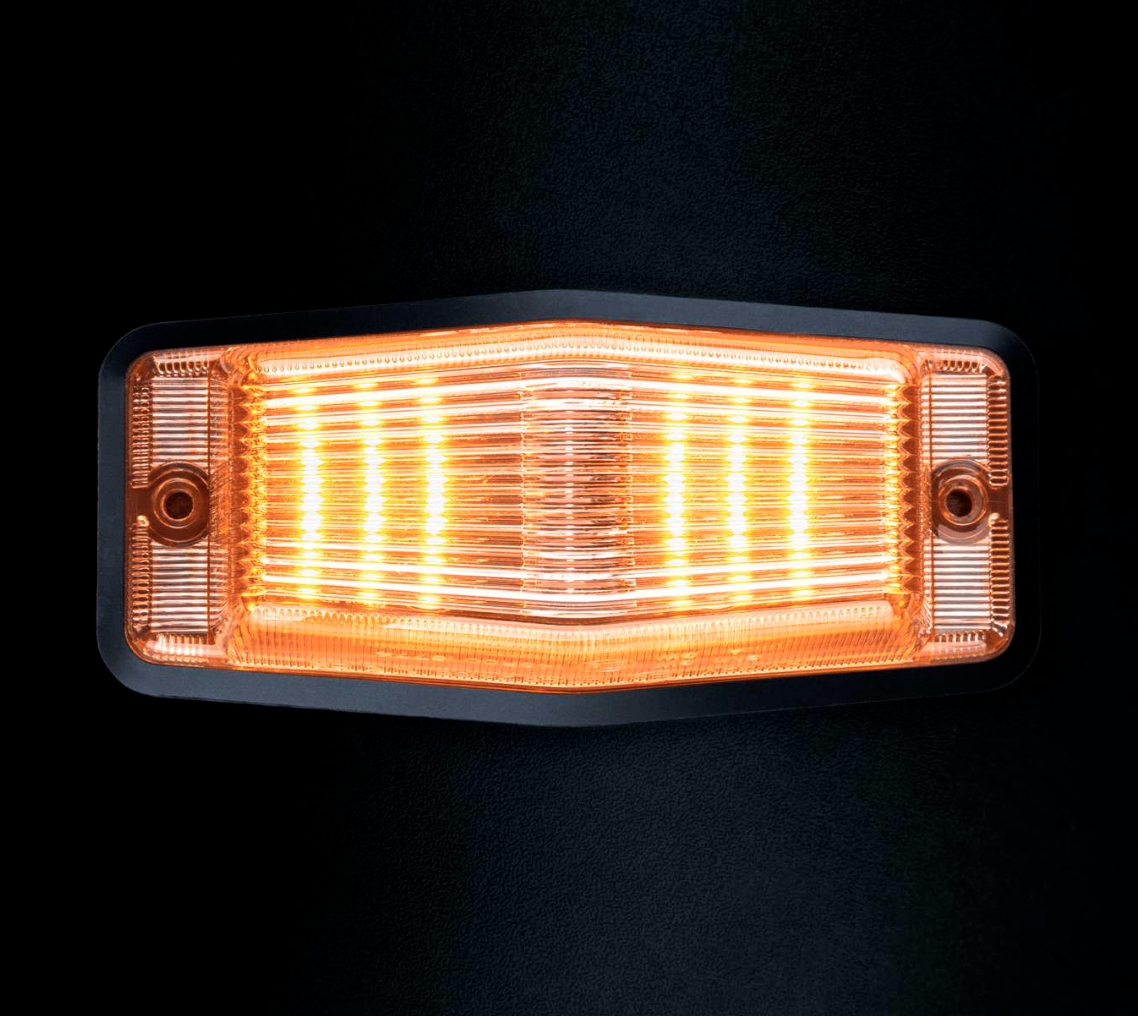

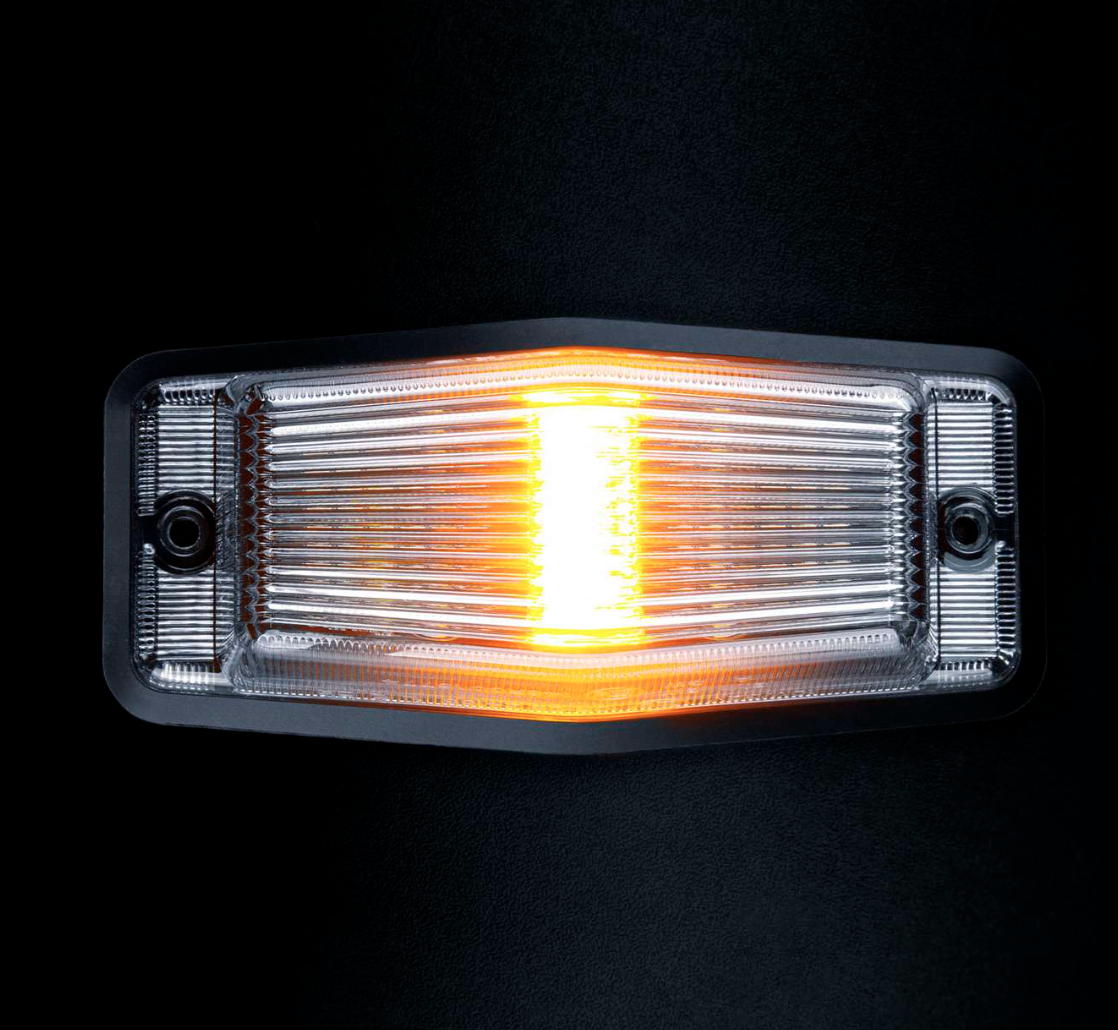

• FunctionsFront   position white,  Amber position light,  Warning light middle part
• Consumption specific function   White position light: 3W, Amber position light: 3W, Warning light: 2,5W
• Patterns  21
• Connection  Cable
• Cable length  1000mm
• Color housingBlack
• Color lens  Clear
• Color LED´s  White/amber
• Material housing/chassiPolycarbonate
• Material lens    Polycarbonate
• Length   125mm
• Depth   32mm
• Height   52mm
• CC   109mm
• Weight    0,0963kg
• IP-classI    P69K
• Operating temperature    -30 – +61°C
• E-approved   Yes
• ADR-approved    No
• According to regulation    ECE R148 (R7,R91)
• EMCECE    R10
